Membrane Filtration System

Q3-40

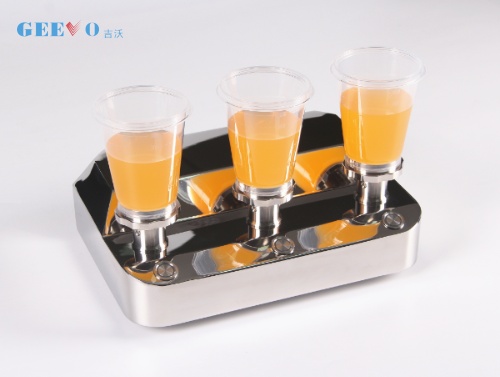

Q3-40 Microbial filtration test system adapts membrane filtration method. System integrates filtration device and vacuum pump into a compact and lightweight design. The dual-purpose water and air pump provides suction filtration power, eliminating the need for suction bottles and allowing direct discharge of waste liquid. Each filter head is equipped with a touch button with an indicator light for independent control, allowing intuitive observation of the control status of the corresponding filter head.

Stainless steel and PP funnel for choice.

Feature
◥ Internal dual-purpose water and air pump, discharge waste liquid directly.
◥ Compact and lightweight design, reduce worktale occupy.
◥ Detachable filter head, fixed positioning design with ball bearing.
◥ No require buffer flask, using much safer
◥ Safe operation with DC power supply.
◥ Mirror stainless steel shell, easy for clean and mainternance.
◥ Touch button with indicator light, operate intuitively.
◥ Multi level circular pagoda shaped drainage pipe mouth

Technical Parameter

◥ Power supply：24V DC
◥ Power：24W
◥ Vaccum pressure：-0.085MPa
◥ Dimension：340 × 210 × 120 mm
◥ Velocity of flow：2000ml/min

Option: PP funnel, ss funnel(100ml, 300ml, 500ml), sterile membrane,flame sterilization tool, tweezer, tweezer stand, flask fittings
