Rapid Transfer Port (RTP)

Rapid Transfer Port also called RTP, is a double-door system, containing Geevo's transfer technology.
This system consists of two basic parts, active part and passive part. The active part is normally mounted on the chamber of Isolator or glovebox. The passive part is mobile and connected to a container, bag or other process component.

When the two assemblies are mated, sterile or hazardous materials can be transferred in and out of the under the control environment without be destroyed, while maintaining the safety of the operators.

RTP is often used for material transfer in or out and removal of solid waste from the chambers.

The RTP system is manufactured from the materials that are resistant to multiple sterilization (autoclave, ethylene oxide, gamma sterilization, H2O2 sterilization, etc.)

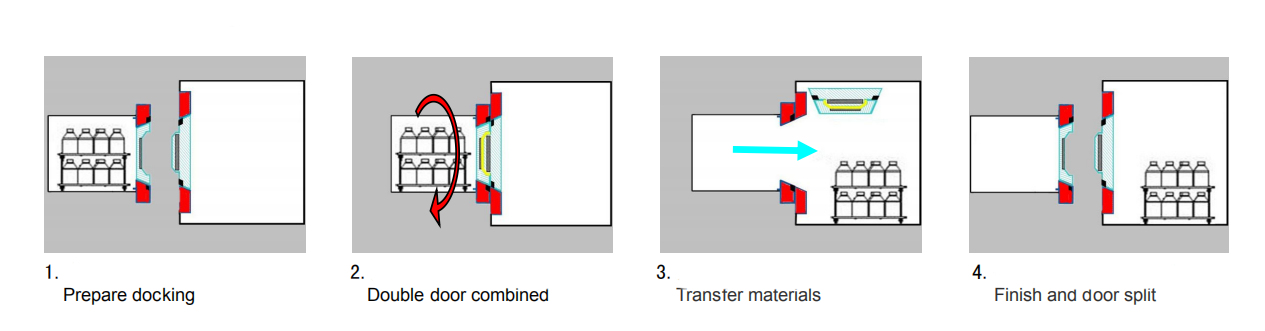

Operation process

Feature

Precision machined components for exact tolerance

High quality stainless steel material easy to clean and sterilization

Easy to install and remove seals

Mechanical interlocks to prevent improper operation

Interlock System

Prevent the improper operation of the transfer port which can compromise the containment and sterility of the barrier/isolator.

The interlocks are incorporated into the Active part and interface with the active port door handle to prevent:

     ＊Active door can’t open once the Passive part is connected or placed.incorrectly

＊Once open the Active door, the Passive part cannot be disconnected.

Main material

SS304/SS316L, POM, silicon

Operation mode

Manual

Option

SS container, tri-clamp

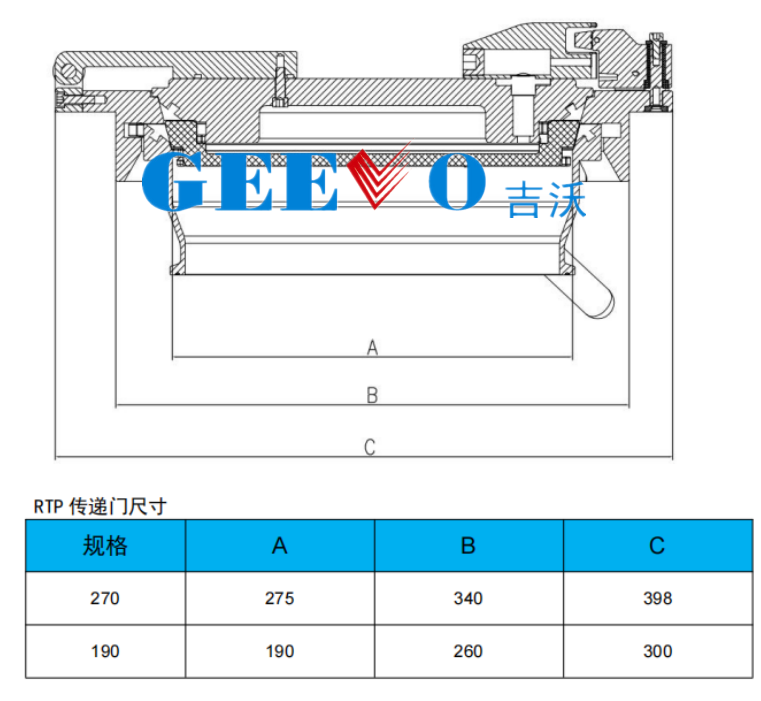

Size

Standard size(mm): 190, 270

Accept customized by customer size

Accept customized by matched container

Application

Pharmaceutical Industry, Biology Industry, Food, Nuclear, etc
