其他设备
Other Devices
过氧化氢消毒机
Hydrogen Peroxide Sterilizer




过氧化氢消毒机、过氧化氢灭菌器

型号:SV-06, SV-08


专为空间灭菌设计

SV系列过氧化氢消毒机采用低浓度过氧化氢雾化结合高频高压电离技术进行空间除菌。过程中过氧化氢生产游离的OH-,对细胞成分进行氧化破坏,从而达到除菌的目的。

该款过氧化氢灭菌器专为密闭空间灭菌设计,比如医院,隔离空间和洁净空间。
另有新款主要为分体式蝶阀等密闭小空间的灭菌。

特点

1. 安全性: 全不锈钢外壳,易于清洁维护

在常温常压下,无残留

有开机延迟功能

2. 独特机头设计: 保证分布均匀性

       SV-08: 360度可旋转机头,喷嘴角度60度可调整

       SV-06: 可选配旋转平台,实现近360度方位喷雾。
3. 快速:杀菌周期快,性价比高
4. 有效:双氧水具有优异的材料相容性(器件、电子元器件、建筑材料),更容易做验证
5. 用途广泛:具有广谱杀菌作用,适用于真菌、细菌、病毒和孢子的杀菌


技术参数
1. 电源:AC 220V/50Hz
2. 注射速率:0-18ml/min.(SV-06), 0-20ml/min.(SV-08)
3. 装药瓶:1L带刻度半透明PP瓶
4. 杀菌剂:7.5%过氧化氢溶液(非易制爆品)
5. 杀灭率:对嗜热脂肪芽孢杆菌可达6个对数的杀灭

应用范围

生物安全实验室,医院病房及ICU、医院细菌控制室,洁净室,疾控,学校等密闭环境消毒。

消毒产品生产企业卫生许可证 浙卫消证字(2020)第0383号

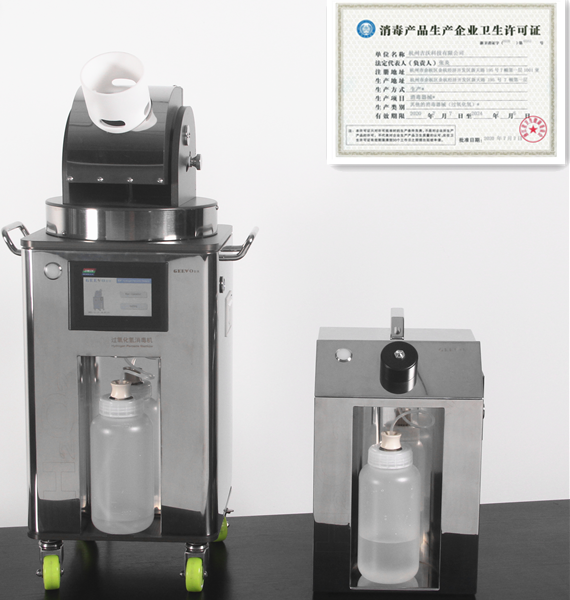

Hydrogen Peroxide Sterilizer,  Hydrogen Peroxide Fogging system

Type: SV-06, SV-08


Design for room sterilization.


SV series Hydrogen peroxide sterilizer applies low concentration hydrogen peroxide fogging combined with high frequency and high pressure ionizarion technology to carry on room sterilization. Hydrogen peroxide produces free OH- during the process, which causes oxidative damage to cell components, thus achieving the purpose of eliminating bacteria.
This instrument specially designed for sterilization in enclosed spaces such as hospital,  isolation room and clean rooms.
There is also coming new types for isolator, transfer cabinet, blending machine,small clean room, split butterfly valve, etc. It can be used to conduct online sterilization of RABS on filling line as well.

Feature
1. Security: SS body material, easy to clean and maintenance.
                   Under the room temperature and atmospheric pressure, non-toxic, no residue.
                   Delay start up function.
2. Unique spray design: guarantee gas uniform distribution.
    SV-08: the head can be rotated at 360degree, and the nozzle angle can be adjusted at 60 degree.
    SV-06: can be matched with a rotating platform to achieve all-round spray.
3. Fast: Fast sterilization cycle, cost-effective.
4. Effective: Hydrogen peroxide has excellent material compatibility (device, electronic components and building materials), much easier to do verification.
5. Wide use: broad-spectrum bactericidal effect, it is applicable to sterilize fungi, bacteria, viruses and spores.


Technical parameter
1. Power supply: AC 220V/50Hz
2. Injection rate :0-18ml/min. (SV-06)/0-20ml/min.(SV-08)
3. Loading bottle: 1L,translucency pp bottle with scale line
4. Sterilizing agent: 7.5% hydrogen peroxide solution (non-explosive)
5. Killing rate: the ability to kill stearothermophilus spores reaches 6-Log


Application
Biological Safety Lab
Hospital ward and ICU
Hospital Bacteria Control
Clean rooms, CDC, School, etc.

Sanitary production license for disinfected product (2020 no.0383)

※ "Notice of the general office of the national health commission on the issuance of guidelines for the use of disinfectants" issued on February 19th, 2020.
※ Ministry of Industry and Information Technology of the People's Republic China "Notice on tax policy in support of prevention and control of pneumonia by novel coronavirus" list of key supplies for epidemic prevention and control (medical emergency) (Ministry of finance taxation administration announcement 2020 no. 8)
