微生物检测
Microbial Test
无菌检查系统
Sterility Test System
无菌检查隔离系统
Aseptic Isolation Technology



隔离操作技术
SV系列无菌检查隔离器


采用物理屏障的手段将受控空间与外部环境互相隔绝的技术,通过袖套口进行安全的操作,形成一种相对隔离。同时采用汽化过氧化氢灭菌技术(VHP),有效杀灭密闭空间内物品表面的微生物,对密闭空间内的空气中及暴露的表面可达106。


使用领域

医药QC研发部门微生物实验室
制药企业无菌生产车间
制药企业毒性、高致敏性生产车间
生物安全实验室(疾控、阳性接种室等)



应用案例

医药QC研发部门微生物实验室

⊿用于无菌制剂和无菌原料药的无菌检查实验,在《中国药典》中有相关描述。它可有效避免实验假阳性结果出现。
制药企业无菌生产车间

⊿无菌分装、无菌取样、无菌配料、无菌称量等无菌生产工艺过程,隔离人员对产品的污染。新版GMP对生产工艺中的隔离技术的应用,更有效的保护产品的安全。
⊿制药企业毒性、高致敏性生产车间
⊿特殊产品的生产过程对现场生产人员的安全带来极大的危险隐患,如激素产品,青霉素等。










SV Isolation Technology, Aseptic Isolator, Sterility test Isolator



The technology is a fast-growing trend among first class pharmaceutical and biotechnology companies around the world.Today, the use of isolators has become standard practice for sterility testing.

Adopts physic barrier method to isolate controlled room from outside environment, and carry out safety operation through sleeve port, air through a microbial retentive filtration system (HEPA minimum), reach isolation absolutely. Meanwhile adopts hydrogen peroxide sterilization technology which can decontaminate material surface in containment room effectively. And its kill ratio can reach 6-log.



Application

a. Sterility Testing
b. Animal experiment
c. Production isolation





Feature

a. Combined chamber for option to meet different requirement. as like,experiment chamber, transfer

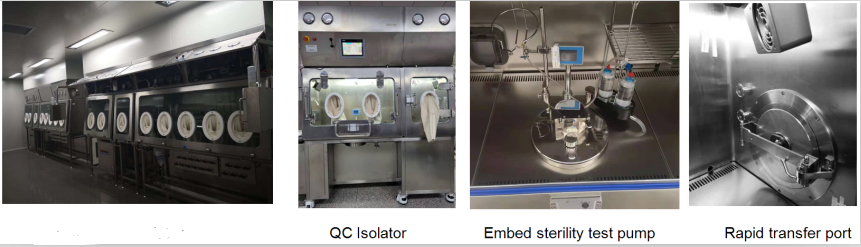

b. Rapid transmission technology
c. Embed sterility test pump for choice
d. Independent sterilization system: Hydrogen peroxide vapor system
e. PLC control system: Pressure control and monitoring, ensures the environment figures can be controlled and traced.
f. Independent air handling system with HEPA filters for each chamber.
g. All system can be custom-made


Advantage

a. Testing Environment figures monitoring and tracing
b. Significantly cut operating cost
c. Faster cycle times
e. Portable for relocation and storage
f. Integrated testing and decontamination systems

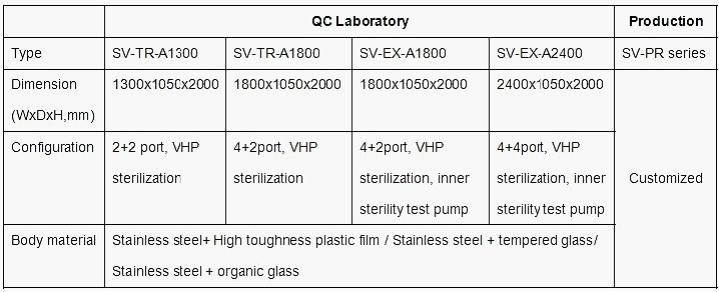

Specification
