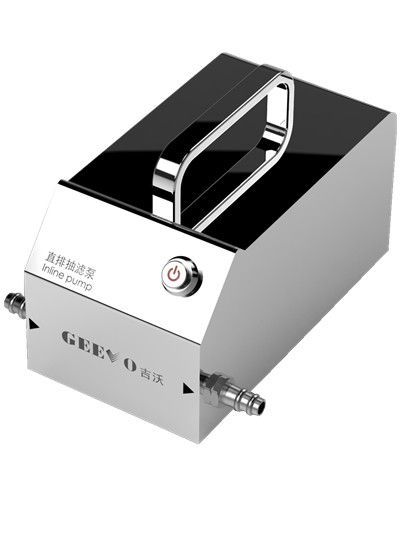

MDP15 直排泵
MDP15 In-line Filtration Pump



直排抽滤泵

MDP15


MDP15直排抽滤泵是国内外微生物过滤装置配套使用的理想产品。

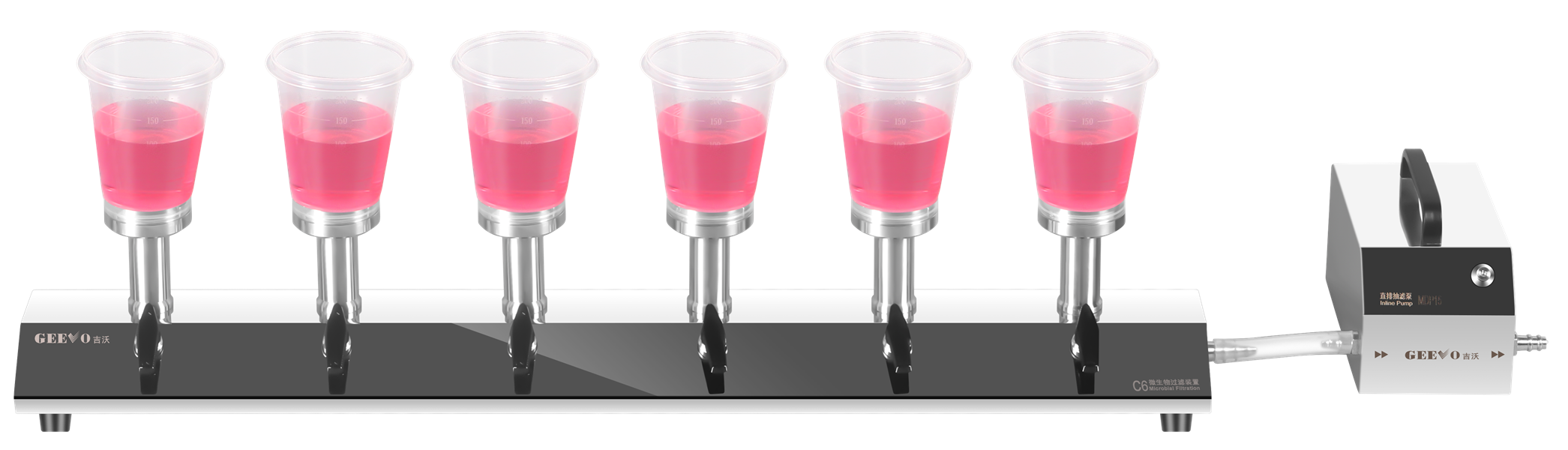

微生物过滤系统是用于微生物检查和其他需要过滤溶液的过滤装置,该泵是微生物检查过滤系统的主要组成。
该泵专门用于实验室,可以在无油状态下连续运转,噪音小,工作效率高,使用寿命长,并精确,安全可靠,使用方便。




产品特点

水气两用隔膜真空泵;
体积小巧,较少实验台的占用;
无需缓冲瓶,设备使用更加安全
管路连接更简洁

直流电源供电,使用更安全;

不锈钢镜面外壳,消毒清洁更方便彻底;
亮灯按钮开关,操作直观

多级圆环宝塔式排液管插嘴,插拔方便及保护排液不受损伤


技术参数

抽气速度:1500ml /min
最大真空度:725mmHg
电源适配器电压:100-240V,50/60Hz
主机输入电压:24V直流电源
电机功率:24w
净重:1.7Kg
噪音:<50dB
长 x宽 x  高 :170mm x 93mm x 90mm

应用领域

微生物过滤
药物分析
精细化工
生物制药
食品检验



In-line Filtration Pump

MDP15


MDP15 In-line Filtration Pump is ideal product for supporting microbial filtration test at home and abroad.
Microbial filtration system is used to do microbial test or other liquid demanded filtration, and MDP15 is main part of it.

It is special for laboratory, can continue work with oil-free, low noise, high work efficient, long lifetime and reliable performance.



Feature

Water and air diaphragm vacuum pump
Smart design
●No need buffer bottle, much safe
●Tube connect easily

DC power supply, safer use

Stainless steel surface, easy to clean

Light button switch, operation intuitively

Multi - stage ring pagoda-type drainage pipe interposition, protect the drainage from damage


Technical Parameter

Air exhaust Speed: 1500ml /min

Max. vacuum: 725mmHg

Voltage of power adapter: 100-240V,50/60Hz

Input voltage of main engine: 24V DC

Power: 24W

Net weight: 1.7KG

Noise: <50dB

LxWxH: 170mm x 93mm x 90mm


Application

Microbial filtration
Drug analysis
Fine chemical industry
Bio-pharmaceutical
Food inspection
