αβ阀(分体式蝶阀)
αβ Valve (Split Butterfly Valve)
常规型
Conventional

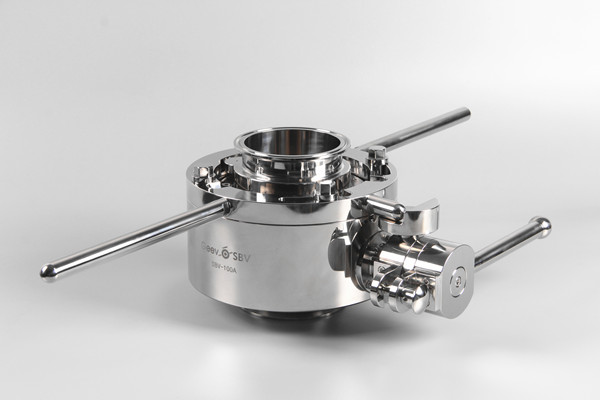

分体式蝶阀(αβ阀)-常规型
Split butterfly valve -Conventional

分体式蝶阀,ab阀,αβ阀 -常规型     (吉沃发明专利技术)

物料密闭转移技术


适合大量物料的快速、安全输送系统
密闭性
经济型方案
为药品生产密闭转移物料提供解决方案


原理

分体式蝶阀由主动阀和被动阀组成,采用分体式蝶阀技术。该阀由吉沃自主研发生产,它只有在两个阀结合互锁后,才能进行物料的密闭转移操作。
实现物料从一个容器内到另外一个容器内的转移是在密闭条件下进行,无菌或高活性物料转移过程保证容器内的无菌状态不受破坏或防止容器内活性物料的扩散。

常规型αβ阀可人工离线对暴露面进行清洗和灭菌,以达到物料转移的规范要求。

互锁设置:只有在主动阀和被动对接到位后才可以打开物料通道;

          当物料通道打开时,主动阀和被动阀不能分离。


使用目的

产品的无菌保护—保证无菌产品在转移过程中免受外界微生物的影响
保护操作人员的安全—防止高致敏性和毒性物质在转移过程中泄漏,危害操作人员的安全
避免产品转移过程中的产品损失
有效控制转移过程中的粉尘扩散
减少产品的交叉污染的可能性
降低设备成本投入


技术参数

—金属对金属纳米级的阀瓣密封

—主体部分材料:316L不锈钢
—密封件材质:符合FDA进口食品级氟橡胶(FKM)
—标准接口,可定制对应接口

—容器外操作阀门开关和产品转移

—符合新版GMP、FDA、欧盟等生产要求



工作过程/Process





应用案例

—无菌原料药转移、分装
—隔离器装料、卸料
—密闭式配料、装料、卸料、取样和粉碎
—无菌胶塞隔离运输
—毒性致敏性物品转移


使用领域

制药   生物   化工   食品   饮料   核工业   疾控



规格

—标准型号尺寸:50mm,100mm,150mm,200mm,250mm,300mm
—接口型式:PN6,PN10,ANSI#150,Tri-Clamp
—定制尺寸:接受非标尺寸定制



型号和接口尺寸参照表



专利号:ZL 2016 1 0349924.1





Split butterfly valve, ab valve, αβ  Valve -Conventional      (Patent for invention technology)

Containment transfer technology



Fast and secure transfer for large quantities
Containment transfer
Economic solution
Supply solution for closed transfer of pharmaceutical materials



Split butterfly valve (Alpha Beta valve), is made up of an active and a passive split valve. It is produced by Geevo Co. which has own patent and brand. The transfer of material from one container to another container is being carried on sealing condition, and the sterile material transfer process guarantees the sterile situation won't be destroyed or avoid being spread of the powder, toxic materials in the container.


Split butterfly valve -Conventional: Accept wash and sterilization the exposed face by manual work to reach the normative requirement of material transfer.

Interlock function: Only active valve and passive valve are mated completely, then can open the transfer channel.

                             When the transfer channel is opened, the passive valve cannot be disconnected.



Technical Parameter

- Valve disc surface sealing by metal to metal
-Body material: 316L stainless steel
-Sealing material: food grade FKM (meet FDA)
-Standard clamp interface, accept customized corresponding connection
-Outside of container operate valve switch and product transfer
-Comply with the new version of GMP, FDA, EU production requirements



Operation process


Purpose of use

a. Protection of sterile product-Guarantee transfer process of sterile product avoiding being effected by outside microbe
b. Operator protection- Avoiding leakage of toxic materials during transfer process which is harmful for people
c. Eliminate loss of product yield during transfer
d. Effective dust control during transfer process
e. Reduce the potential of product cross-contamination
f. Save the cost on equipment



 Application case

-Sterile API transfer and subpackage
-Isolator charging and discharging
-Contained dispensing, charging, discharging, sampling and milling
-Containment transfer of sterile rubber plug
-Transfer toxic product



Application

Pharmaceutical  Biotechnology  Chemical  Food  Beverage  Nuclear  CDC



Specification

Standard size: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm
Connections: PN6, PN10, ANSI#150, Tri-Clamp
Customized size: Accept customized non-standard size


 patent no.: ZL 2016 1 0349924.1
